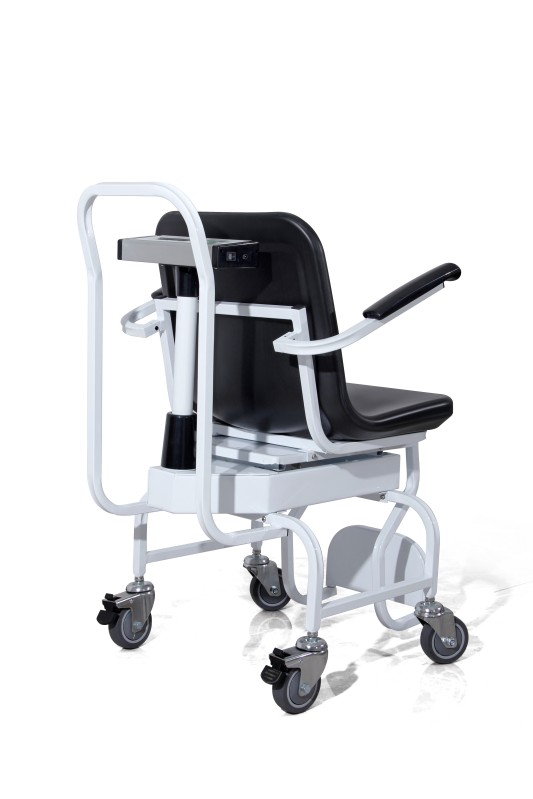

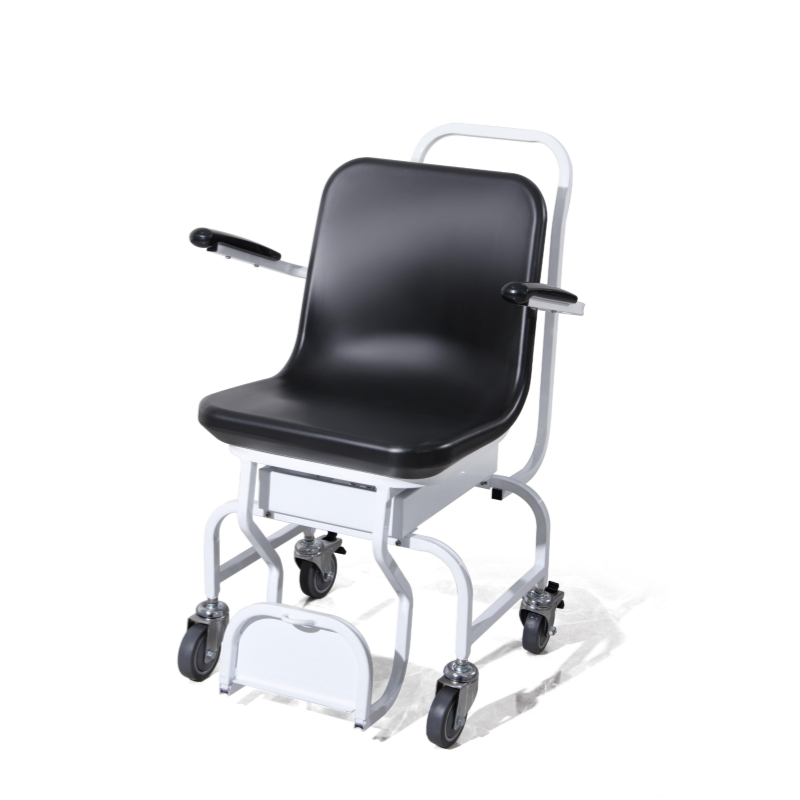

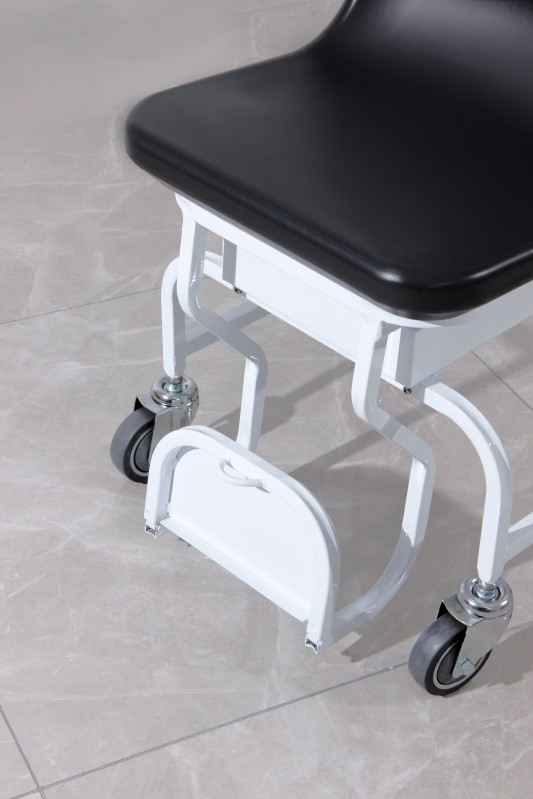

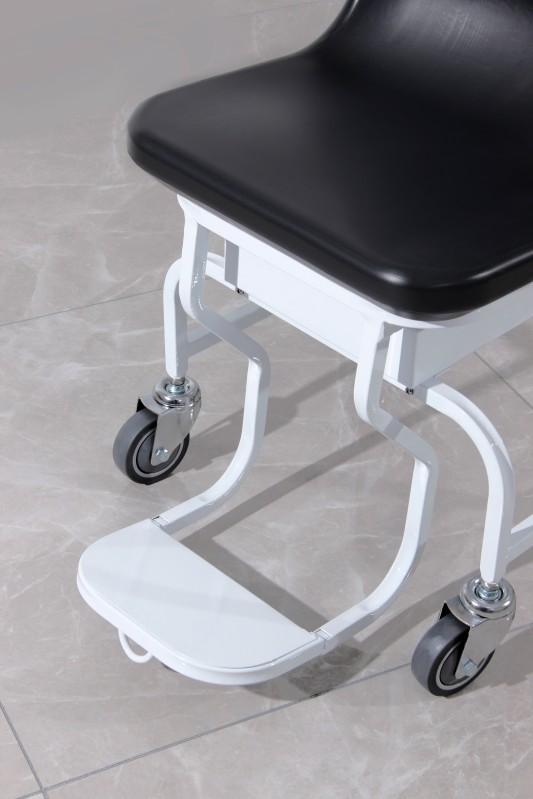

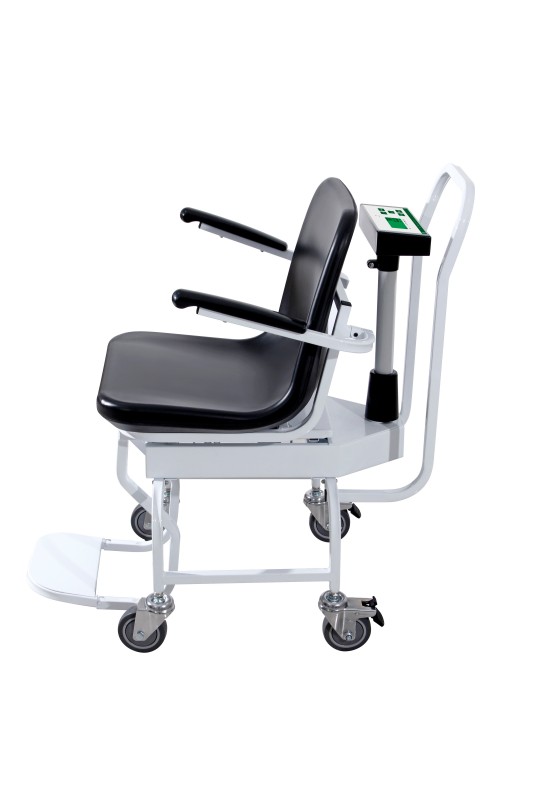

Mobile Wheelchair Scale

The mobile wheelchair scale is a specialized and highly practical weighing device designed to meet the unique needs of weighing individuals in wheelchairs in various settings. It offers convenience, accuracy, and mobility, making it an essential tool in hospitals, rehabilitation centers, nursing homes, and other healthcare facilities.
This scale features a compact and sturdy design. The body is constructed with a combination of durable materials. The frame is typically made of a high-strength metal alloy, such as aluminum or steel, which provides excellent stability and can support heavy loads. The weighing platform is made of a non-slip and wear-resistant material, ensuring the safety and reliability of the wheelchair during the weighing process. The scale is equipped with four smooth-rolling wheels, two of which are usually lockable, allowing for easy movement and precise positioning.

Select the number of specifications

Please check the product information you want！

Product Detail

(A) Technical Parameters

Weighing Capacity: The mobile wheelchair scale typically has a maximum weighing capacity ranging from 200 kg to 500 kg. This wide range is designed to handle the weight of both the wheelchair and the occupant, even in cases where heavier-duty wheelchairs or bariatric patients are involved.
Weight Measurement Accuracy: It offers a high level of accuracy, usually within ± 0.1 kg to ± 0.5 kg. This precision is crucial for accurate patient monitoring and medical record-keeping.
Platform Size: The platform is usually large enough to accommodate standard wheelchairs. The dimensions may vary, but a common size is around 80 cm x 120 cm. The platform height is relatively low, typically around 5 cm to 10 cm, to facilitate easy access.

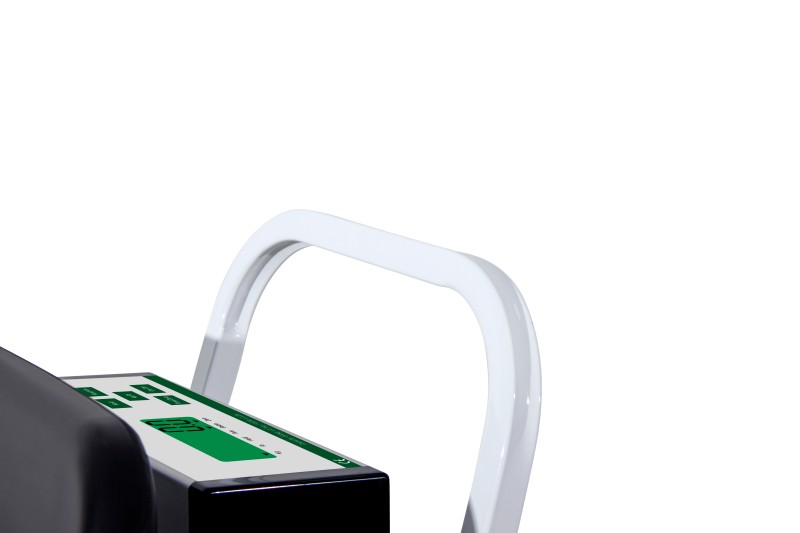

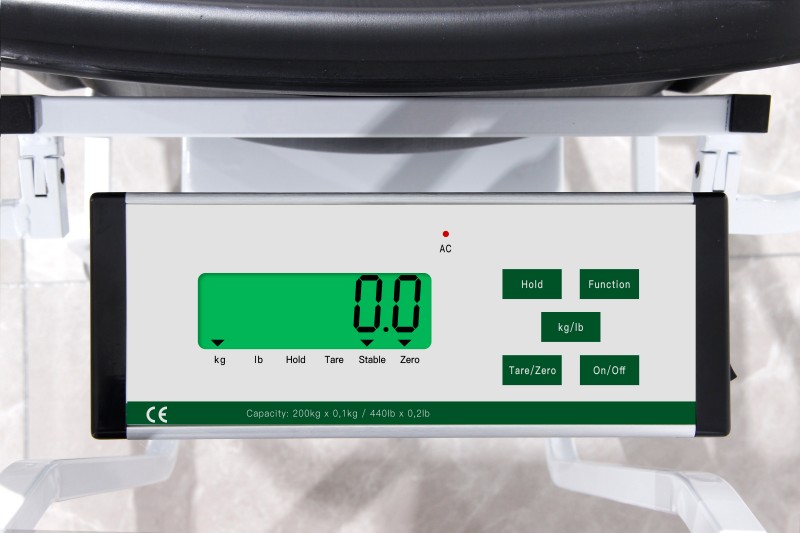

Display: The scale is equipped with a clear LCD (Liquid Crystal Display) or LED (Light Emitting Diode) display that shows the weight measurement in bright and easily readable digits. The display size is optimized for visibility from a reasonable distance.
Power Supply: It can be powered by batteries (usually rechargeable) or an AC adapter. The battery-powered option provides portability, allowing the scale to be used in different locations within a facility or even outdoors. The AC adapter is convenient for stationary use in a specific area.
Unit of Measurement: It supports units such as kilograms (kg) and pounds (lb). The unit conversion function makes it easy for users to switch between different units according to their preference or the requirements of the medical facility.
Operating Temperature: The scale is designed to operate within a temperature range of -10°C to 40°C. This temperature range ensures the proper functioning of the internal components and sensors.

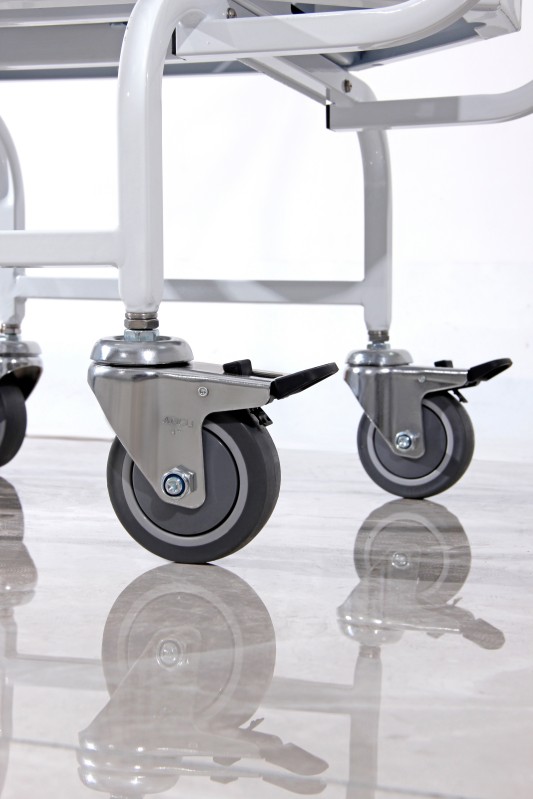

Mobility: The scale is equipped with four wheels, usually with a diameter of around 5 cm to 10 cm. Two of the wheels are lockable to ensure stability during weighing. The overall mobility of the scale allows it to be easily moved and maneuvered in different environments.

(B) Material and Process

Frame Material: The frame of the mobile wheelchair scale is made of a high-strength metal alloy, such as aluminum or steel. Aluminum is lightweight and corrosion-resistant, while steel offers greater strength and durability. The metal is processed through precision machining to ensure accurate dimensions and a smooth surface finish.
Platform Material: The weighing platform is made of a non-slip and wear-resistant material, such as a special type of rubber or a textured metal surface. The rubber material provides good traction and shock absorption, while the textured metal surface is durable and easy to clean.
Wheel Material: The wheels are usually made of a durable rubber material that can withstand the weight of the scale and provide smooth rolling. The axles and other wheel components are made of metal to ensure strength and reliability.
Manufacturing Process: The manufacturing process involves precision assembly of the frame, platform, and wheels. The load cells and other electronic components are carefully installed and calibrated to ensure accurate weighing. The entire scale is tested for quality and performance before being shipped.

(C) Functional Features

Weight Measurement: The core function of the mobile wheelchair scale is to accurately measure the weight of an individual in a wheelchair. The advanced load cell technology ensures reliable and precise readings.
Tare and Unit Conversion: The tare function allows for subtracting the weight of the wheelchair from the total weight measurement, and the unit conversion function enables users to view the weight in different units.
Hold Function: The hold function freezes the weight reading on the display, making it easier to record the measurement even if there is some movement.
Connectivity Options: Bluetooth and Wi-Fi connectivity, if available, allow for wireless data transfer to a smartphone, computer, or other device for convenient record-keeping and analysis.
Battery and Power Management: The built-in battery provides portability, and the scale usually has a power management system to optimize battery life and ensure reliable operation.

(D) Optional Accessories

Ramps: Extra ramps can be purchased if needed. These ramps can be used to provide a gentler slope for wheelchair access, especially in cases where the existing ramps are not suitable or if additional access points are required.
Battery Pack: For battery-powered models, an extra battery pack can be a useful accessory. It ensures that the scale can continue to operate even if the main batteries run low or need to be recharged.
AC Adapter: If the scale is mainly used in a stationary location, an AC adapter is a convenient accessory. It provides a reliable power source and eliminates the need to worry about battery life.
Data Transfer Cable: For models with USB or other wired data transfer options, a data transfer cable can be used to connect the scale directly to a computer or other device for data backup and management.
