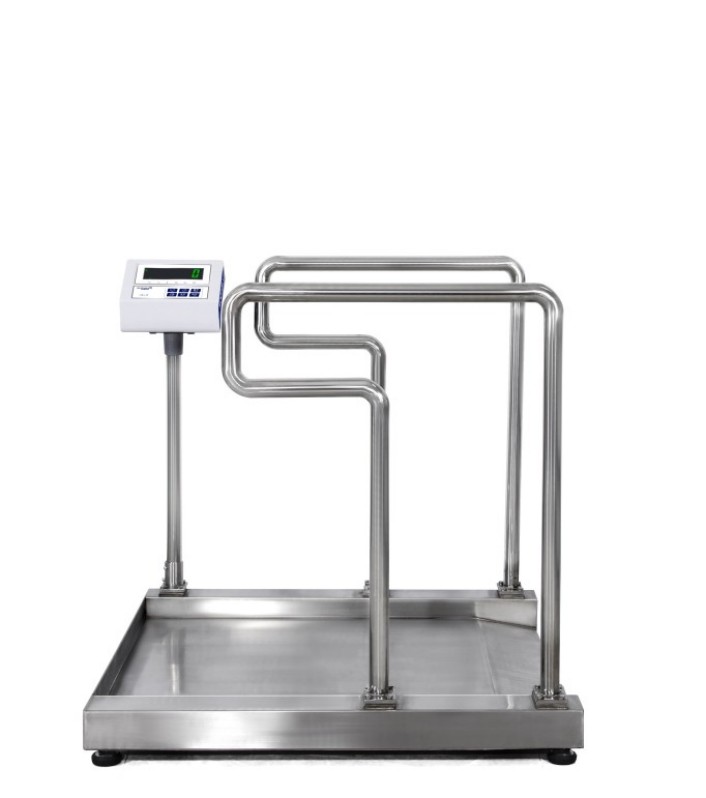

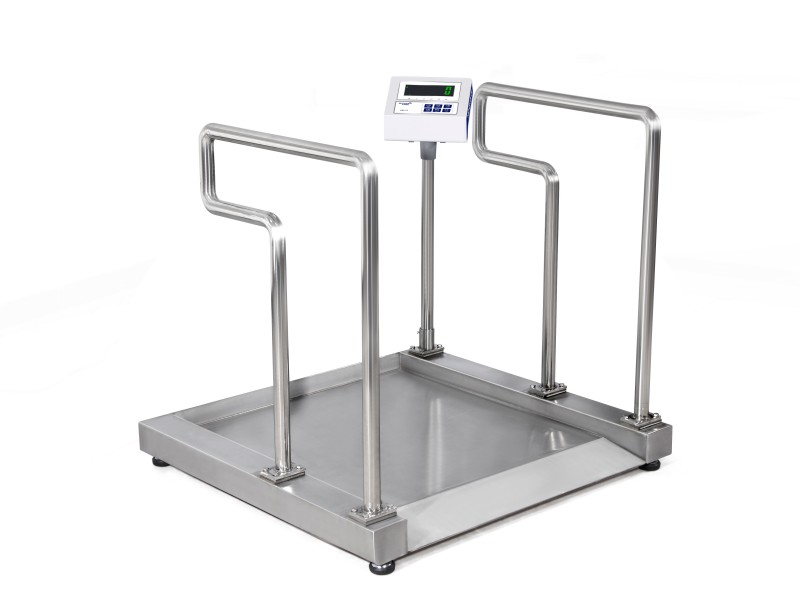

Wheelchair Scale

The wheelchair scale is a specialized weighing device designed to accurately measure the weight of individuals while they remain seated in a wheelchair. It is an essential tool in various settings such as hospitals, rehabilitation centers, nursing homes, and airports, where the mobility of patients or passengers may be restricted.

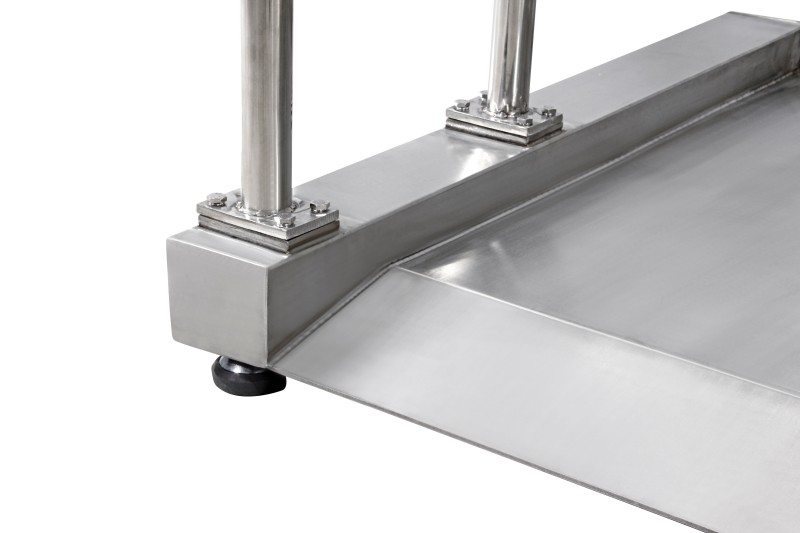

This scale features a large and stable platform that can accommodate different types of wheelchairs. The platform is made of a durable and non-slip material, ensuring the safety of the wheelchair and its occupant during the weighing process. The scale has a low-profile design, allowing for easy access and roll-on convenience. It is equipped with ramps on both sides, enabling smooth entry and exit of the wheelchair.

Select the number of specifications

Please check the product information you want！

Product Detail

(A) Technical Parameters

Weighing Capacity: The wheelchair scale typically has a maximum weighing capacity ranging from 200 kg to 500 kg. This wide range is designed to handle the weight of both the wheelchair and the occupant, even in cases where heavier-duty wheelchairs or bariatric patients are involved.
Weight Measurement Accuracy: It offers a high level of accuracy, usually within ± 0.1 kg to ± 0.5 kg. This precision is crucial for accurate patient monitoring and medical record-keeping.
Platform Size: The platform is usually large enough to accommodate standard wheelchairs. The dimensions may vary, but a common size is around 80 cm x 120 cm. The platform height is relatively low, typically around 5 cm to 10 cm, to facilitate easy access.
Display: The scale is equipped with a clear LCD (Liquid Crystal Display) or LED (Light Emitting Diode) display that shows the weight measurement in bright and easily readable digits. The display size is optimized for visibility from a reasonable distance.
Power Supply: It can be powered by batteries (usually rechargeable) or an AC adapter. The battery-powered option provides portability, allowing the scale to be used in different locations within a facility or even outdoors. The AC adapter is convenient for stationary use in a specific area.
Unit of Measurement: It supports units such as kilograms (kg) and pounds (lb). The unit conversion function makes it easy for users to switch between different units according to their preference or the requirements of the medical facility.
Operating Temperature: The scale is designed to operate within a temperature range of -10°C to 40°C. This temperature range ensures the proper functioning of the internal components and sensors.

(B) Material and Process

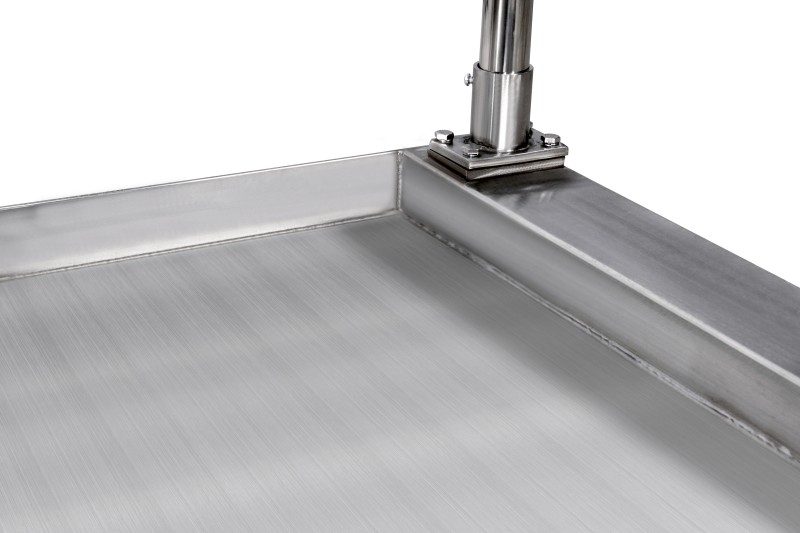

Platform Material: The platform is made of a high-strength and non-slip material such as a special type of rubber or a textured metal surface. This material provides a stable and secure base for the wheelchair and helps prevent any accidental slips or movements.

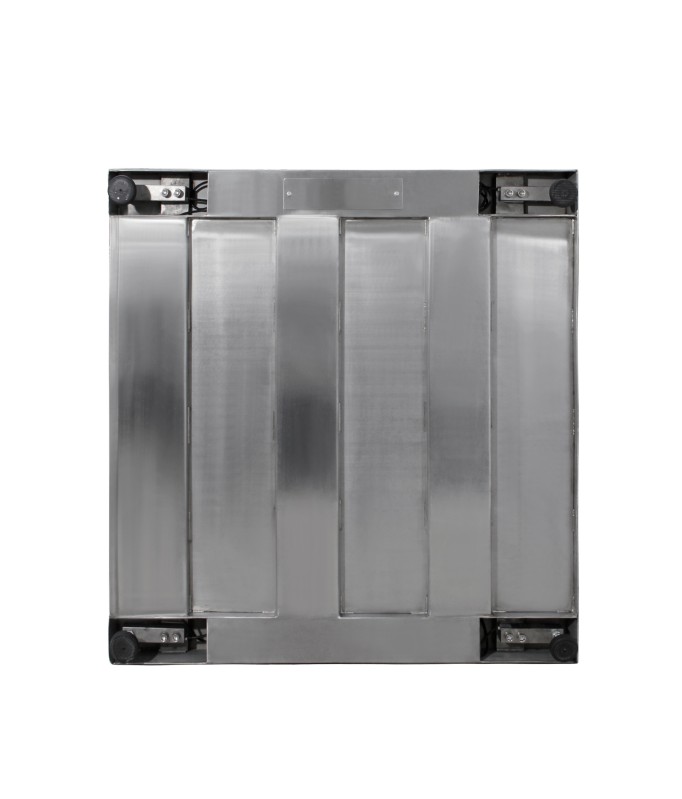

Body Material: The body of the wheelchair scale is usually made of a combination of metal and plastic. The metal frame provides the necessary strength and rigidity to support the weight of the wheelchair and occupant. The plastic casing is used for its durability and aesthetic appeal. It also helps protect the internal components from external damage.
Manufacturing Process: The manufacturing process involves precision machining for the metal parts to ensure accurate dimensions and a smooth surface finish. The plastic components are produced through injection molding, which allows for complex shapes and consistent quality. The assembly of the scale is carried out in a controlled environment, and each unit undergoes strict quality control testing to meet the specified accuracy and performance standards.

(C) Functional Features

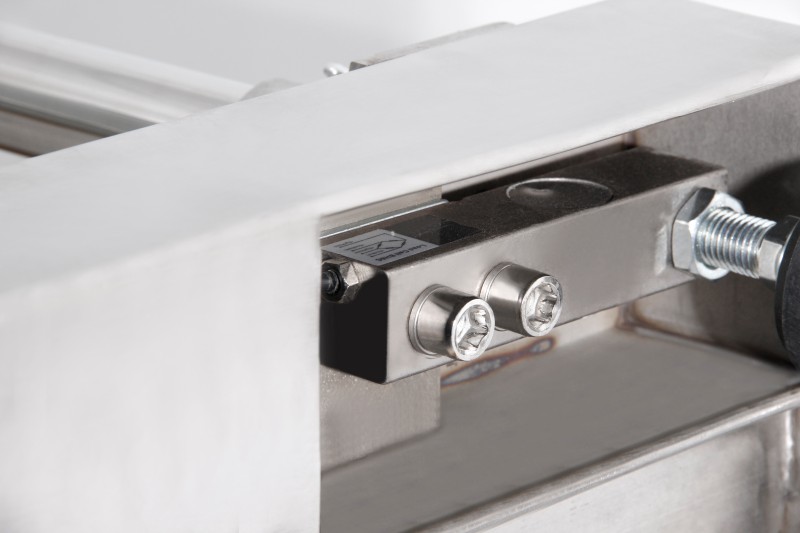

Weight Measurement: The core function of the wheelchair scale is to accurately measure the weight of an individual in a wheelchair. The advanced load cell technology ensures reliable and precise readings.
Tare and Unit Conversion: The tare function allows for subtracting the weight of the wheelchair from the total weight measurement, and the unit conversion function enables users to view the weight in different units.
Hold Function: The hold function freezes the weight reading on the display, making it easier to record the measurement even if there is some movement.
Connectivity Options: Bluetooth and Wi-Fi connectivity, if available, allow for wireless data transfer to a smartphone, computer, or other device for convenient record-keeping and analysis.
Printing Function: Some models have a built-in printer that can print out weight measurement reports, which is useful for medical record-keeping.

(D) Optional Accessories

Ramps: Extra ramps can be purchased if needed. These ramps can be used to provide a gentler slope for wheelchair access, especially in cases where the existing ramps are not suitable or if additional access points are required.
Battery Pack: For battery-powered models, an extra battery pack can be a useful accessory. It ensures that the scale can continue to operate even if the main batteries run low or need to be recharged.
AC Adapter: If the scale is mainly used in a stationary location, an AC adapter is a convenient accessory. It provides a reliable power source and eliminates the need to worry about battery life.
Data Transfer Cable: For models with USB or other wired data transfer options, a data transfer cable can be used to connect the scale directly to a computer or other device for data backup and management.
